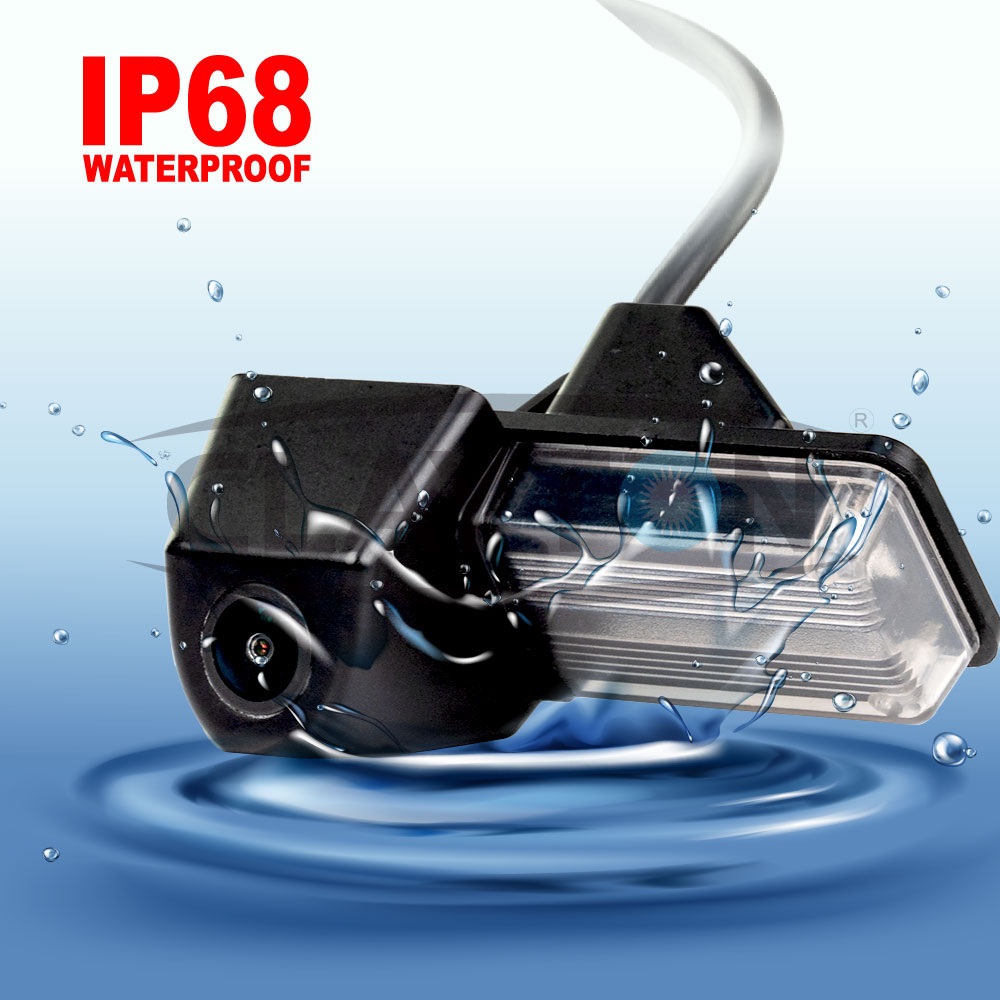

Rear View Camera for Toyota Land Cruiser After Market Screen

Special Rear View Camera for Land Cruiser , The reversing camera is automatically activated when ‘reverse’ gear is selected.

Specification:
· Image Sensor: 1/3 “OV Color CCD
· Effective Pixels: NTSC 512 (H)x492 (V)
· Horizontal Resolution: 420 TVL
· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
· Night Vision: 5-10meters
· Lens: 2.8mm
· Diagonal Viewing Angle: 120 degree optional
· Synchronization: Internal synchronization
· Signal to noise ratio: >48db
· Signal System: NTSC
· Electronic Shutter: Auto
· Video Output: RCA interface, 1.0Vp-p, 75Ohm
· White Balance: Auto
· Backlight Compensation: Auto
· Power: DC 12V
· Current Consumption: 50-60mA, Max 130mA with IR on
· Operating Temperature: -20°C~ +60°C, RH95% Max
· Storage Temperature: -30°C ~ +80°C, RH95% Max
· Video cable length: 6m
· Power supply cable length: 100cm
Features:
· Weatherproof
· support night vision.
· CCD imaging sensor.
· Support NTSC Video system.
· High-definition and wide viewing angle.
· Applicable to variety of Vehicles: car, truck, RV, mini-van etc.
· Easy to install, you can install the monitor via mount holder or universal bracket.

Package Content:
· 1x Car Rear View Camera
· 1x6m Video Cable
· 1x1m Power Cable
