Rear View 170° Angle Camera for Toyota Prado 2010 License Plate Light
· Weatherproof
· support night vision.
· CCD imaging sensor.
· Support NTSC Video system.
· High-definition and wide viewing angle.
· Applicable to variety of Vehicles: car, truck, RV, mini-van etc.
· Easy to install, you can install the monitor via mount holder or universal bracket.

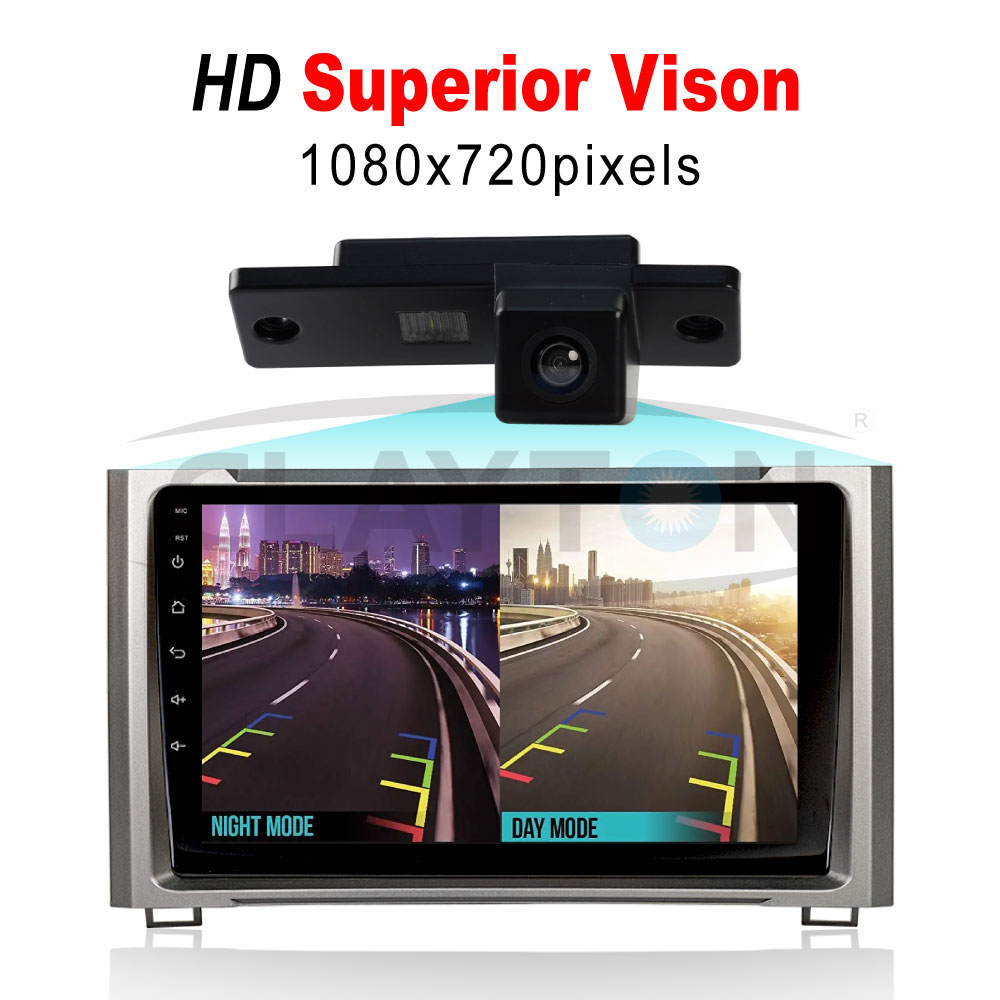

Special Rear View 170° Angle Camera for Toyota Prado 2010 License Plate Light
Please check the camera size carefully before make the order so that our camera can be fit for your car license plate lamp!
(Below Car type and years Just for a reference, please check your license plate lamp place size ,make the final confirmation )
For Toyota Prado 2010
Specification:
· Image Sensor: 1/3 “OV Color CCD
· Effective Pixels: NTSC 512 (H)x492 (V)
· Horizontal Resolution: 420 TVL
· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
· Night Vision: 5-10meters
· Lens: 2.8mm
· Diagonal Viewing Angle: 120 degree optional
· Synchronization: Internal synchronization
· Signal to noise ratio: >48db
· Signal System: NTSC
· Electronic Shutter: Auto
· Video Output: RCA interface, 1.0Vp-p, 75Ohm
· White Balance: Auto
· Backlight Compensation: Auto
· Power: DC 12V
· Current Consumption: 50-60mA, Max 130mA with IR on
· Operating Temperature: -20°C~ +60°C, RH95% Max
· Storage Temperature: -30°C ~ +80°C, RH95% Max
· Video cable length: 6m
· Power supply cable length: 100cm
Features:
· Weatherproof
· support night vision.
· CCD imaging sensor.
· Support NTSC Video system.
· High-definition and wide viewing angle.
· Applicable to variety of Vehicles: car, truck, RV, mini-van etc.
· Easy to install, you can install the monitor via mount holder or universal bracket.
Package Content:
· 1x Car Rear View Camera
· 1x6m Video Cable
· 1x1m Power Cable
Install tips
Take out your license plate light at the back of your car.
Fix the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the power of the camera to your reverse lights – red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.
